SKU: IPSDM4MP Category:

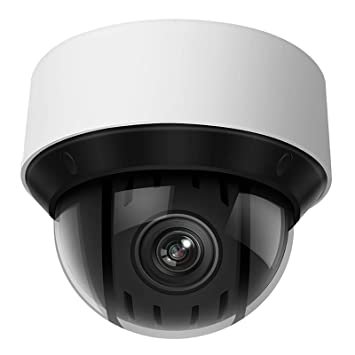

Outdoor 4MP PTZ IP Camera, 4X Zoom

$ 340



Share it:

This small size Pan Tilt Zoom camera provides beautiful 2K resolution video thanks to its 4MP resolution image sensor. If your 1080P HD camera isn’t cutting it, then this is the camera of choice. This PTZ camera offers the latest in video encoding compression. It allows the user to select either H.265 or H.264 video compression. H.265 can provide up to 50% savings in storage while maintaining the same video quality when compared to H.264. This security camera can be powered by a 12VDC adaptor or PoE 802.3af compliant switch. It is capable of storing recorded video to an microSD slot built into the housing that can recognize up to 256GB. This feature offers added security as you can record to the SD slot and the NVR. If the NVR were ever to be removed by would be thieves you would still have footage stored inside the camera. Note the microSD card is not included.

If you are using this Mini PTZ network Camera for live surveillance, you can zoom in up to 100ft away to pick up a license plate from a parking lot in daylight conditions. It is also a great camera to keep an eye on the workplace while away. Plus, with advanced image enhancement features such as WDR you’ll get usable images out of just about any lighting condition.

This 2K PTZ camera offers the ability to set presets and patterns with ease directly on the camera or on the NVR. This camera like our other ip cameras and IP security camera systems offers the capability of monitoring video remotely. You can view the feed using its built-in web server and an internet browser on Windows or Mac computer. You can even use our iPhone app and Android app to remotely view and control the camera.

This camera is rated IP66 for outdoor use, and is also great for indoor use, as in a warehouse, office, jewelry store, or lobby.

Features

  • Mini Network Pan Tilt Zoom Camera
  • 4MP Progressive Scan CMOS Sensor
  • Real Time 4MP 2K Streaming at 30fps
  • H.265, H.264 encoding
  • 4X Motorized Optical Zoom (2.7-11mm Lens)
  • 16X Digital Zoom
  • WDR Wide Dynamic Range
  • BLC, HLC, Auto White Balance, 2D/3DNR
  • Day and Night image sensor that switches to black and white mode when there is low light
  • Web Interface for easy viewing over Internet Explorer
  • Compatible with our CMS software for viewing from PC or Mac
  • Recommended for use with a NVR
  • Easily viewable over smartphone/tablet
  • Video Analytics for Smart Detection:
    • Tripwire
    • Intrusion detection
    • Abandoned or Missing object detection
  • Capable of sending motion alerts to your smartphone or email
  • Up to 300 presets, 8 tours, 5 patterns, 5 Auto-Scans
  • 12V DC Power or PoE 802.3af compliant
  • Ceiling or wall mount capable
  • Recessed ceiling mountable with optional in-ceiling mount (sku JB200C)
  • Weather Proof IP66
  • Vandal Resistant IK10

What’s included?

  • (1) 2K Mini Outdoor Network PTZ Camera, Wired

Specifications

Camera
Image Sensor 1/3″ 4MP CMOS
Effective Pixels 2592 (H) x 1520 (V)
Scanning System Progressive
Electronic Shutter Speed 1/1 – 1/30,000s
Min. Illumination Color: 0.05Lux at F1.6, B&W: 0.005Lux at F1.6
S/N Ratio More than 50dB
IR Distance None
IR On/Off Control No
IR LEDs None
Lens
Focal Length 2.7–11mm, (4X Optical Zoom)
Max Aperture F1.6 – F2.8
Angle of View H: 112.5°–30°
Focus Control Auto / Manual
Close Focus Distance 3.94″ – 39.4″
Digital Zoom 16X
Max Distances* at 4X Zoom
Detect Observe Recognize Identify
591ft 236ft 118ft 59ft
Video
Video Interface IP (Network Based Camera)
Compression H.265, H.264
Streams Main Stream, Sub Stream 1, Sub Stream 2
Resolution 4MP (2592×1520), 3MP (2304×1296), 1080p (1920×1080) / 720P (1280×720) / D1 (704×480)
Frame Rate Main Stream: 4MP, 3MP, 1080P, 1.3MP, 720P (1-30fps)
Sub Stream 1: D1, CIF (1 – 30fps)
Sub Stream 2: 720P, D1, CIF (1-30fps)
Bit Rate H.265/H.264: 448K – 8192Kbps
Day/Night Auto(ICR), Color, B/W
Backlight Compensation BLC, HLC, WDR 120db
White Balance Auto, ATW, Indoor, Outdoor, Manual
Gain Control Auto, Manual
Noise Reduction Ultra DNR (2D/3D)
Motion Detection Yes, stream compatible w/ specific NVR or Software
Region of Interest Yes
Electronic Image Stabilization No
Defog Yes
Image Flip 180°
Privacy Masking Up to 24 areas
Video Analytics
Auto Tracking No
Video Analytics Tripwire, Intrusion, Abandoned/Missing Object Detection
Audio
Compression None
Audio Interface None
PTZ
Pan/Tilt Range Pan: 0° – 355°; Tilt: 0° – 90°
Manual Control Speed Pan: 0.1° – 100° /s; Tilt: 0.1° – 60° /s
Preset Speed Pan: 100° /s; Tilt: 60° /s
Preset 300
PTZ Mode 5 Patterns, 8 Tour, Auto Pan, Auto Scan
Speed Setup Human-oriented focal length/ speed adaptation
Power up Action Auto restore to previous PTZ and lens status after power failure
Idle Motion Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
Protocol PelcoD, DH-SD, ONVIF
Network
Ethernet RJ-45 (100Mbps)
Protocol IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1X
Compatibility ONVIF Profile S & G
Max. User Access 20 users
Recording Methods NAS, Local PC, MicroSD, NVR, FTP
Smart Phone iOS, Android
Web Viewing IE
Other Connections
Memory Slot microSD, Max 256GB (not included)
BNC No
RS485 No
Power 12V DC
Alarm No
General
Power DC12V 1.5A, PoE (802.3af)
Power Consumption 10W
Operating Temperature -22°F to +140°F, Less than 95% Relative Humidity
Weather Proof Yes IP66
Vandal Resistance IK10 Impact and Vandal Resistant
Dimensions 4.8″ (diameter) x 3.5″ (height)
Construction Metal
Weight 1.6 lbs
Certifications CE, UL, FCC Part 15 Subpart B

*Distance is calculated based on sensor specifications and lab test results set at full optical zoom according to EN 62676-4 guidelines for security cameras which defines the criteria for recognition and identification.
